Prepare 3 pin connector by sliding shrink wrap tubing onto the white and black wire.
-
Temporarily tape the GFCI coil wires to the connector wires overlapping by 3/4" to 1".
-
Place a large piece of shrink tubing at the end of the CT wires run the orange wire through.
-
-
-
Wrap the orange wire self test wire through the CT 5 times then back to the shrink tubing.
-
Shrink the tubing with a heat gun or very carefully with a lighter to ensure the wires stay in place.
-
-
-

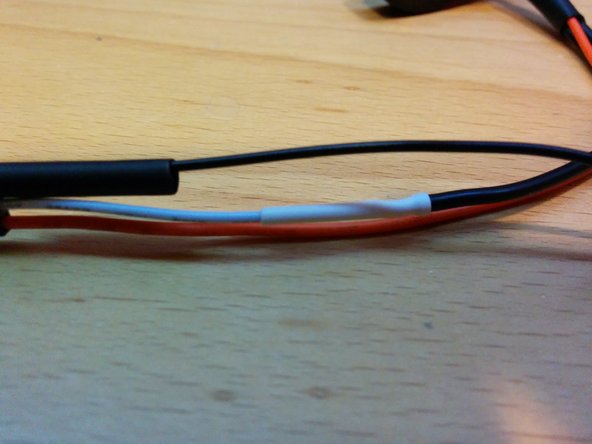

Cut the white wire to length leaving one quarter inch overlap and solder to 1 CT wire. Shrink the tubing.
-

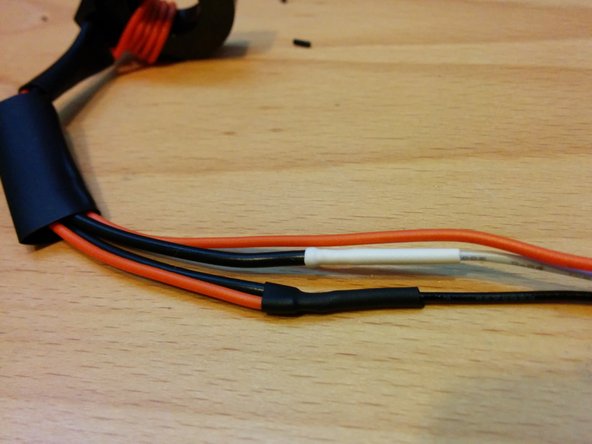

Cut the black wire to length leaving one quarter inch overlap and solder to both the orange wire and the other lead from the CT. Shrink the tubing.
-

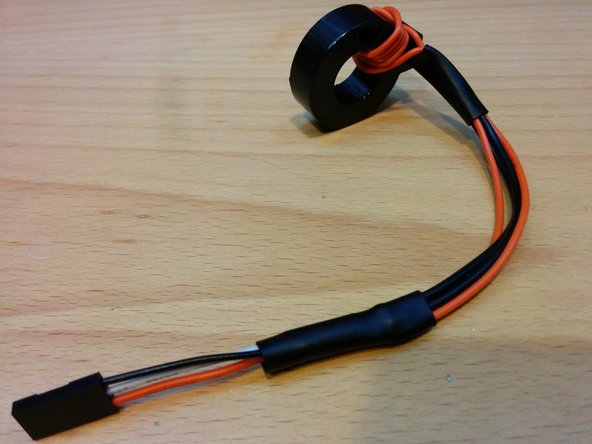

Shrink a large piece of shrink tubing over the connections to finish your GFCI coil with self test.
-
-
-
Test connections with a multimeter set to measure resistance. Orange to Black should measure 0 ohms. White to Black should read 42 to 50 ohms.
-
Connect to OpenEVSE board. Ground (Black wire) should be closest to the board edge.
-
