Carefully remove all the components from the anti-static bag.
-
-
-
Solder the 16 (Mono LCD) or 18 (RGB LCD) pin header on the bottom of OpenEVSE logic board (solder from the top - pins on bottom) See picture 1 and 2.
-
Do not install header pins in the G & B holes if you are building a Mono LCD.
-
-
-

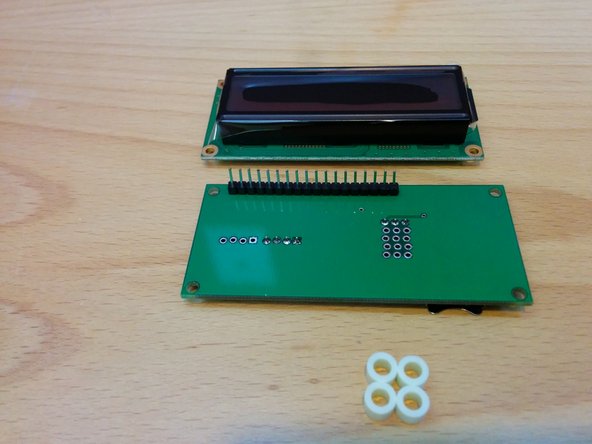

Place nylon spacers on each corner of the logic board.
-

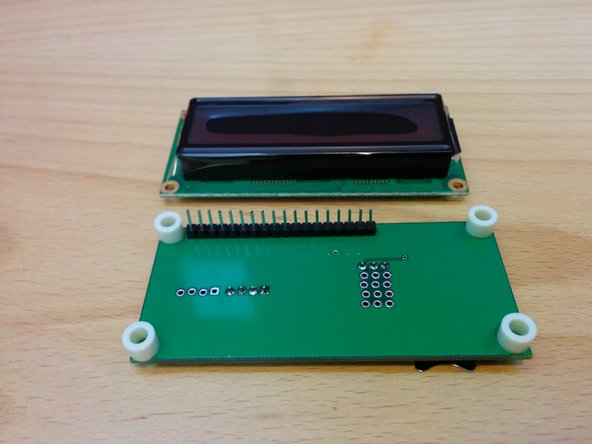

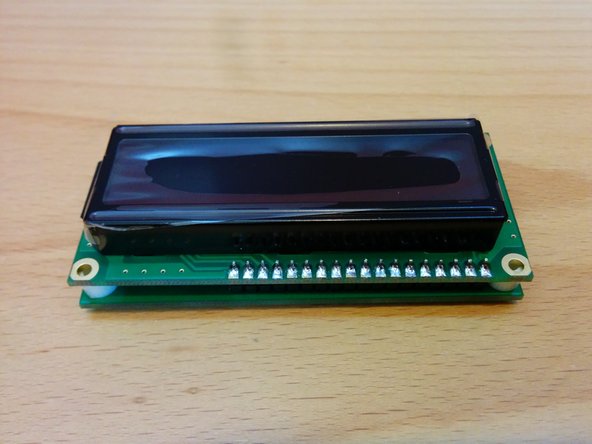

Position LCD module on top of the spacers and solder in place.
-
-
-

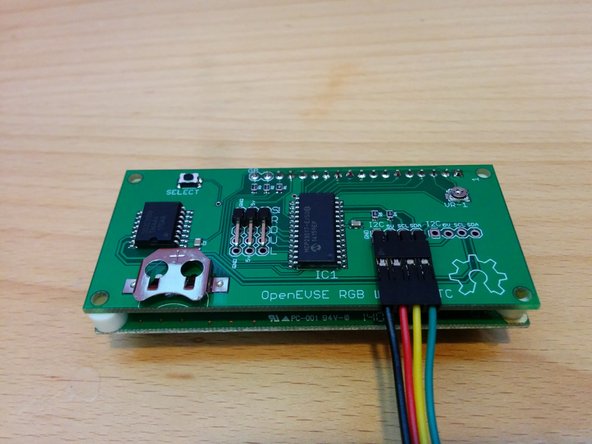

Connect 4 pin cable to the logic board with ground on the left side. Cable colors may vary.
-

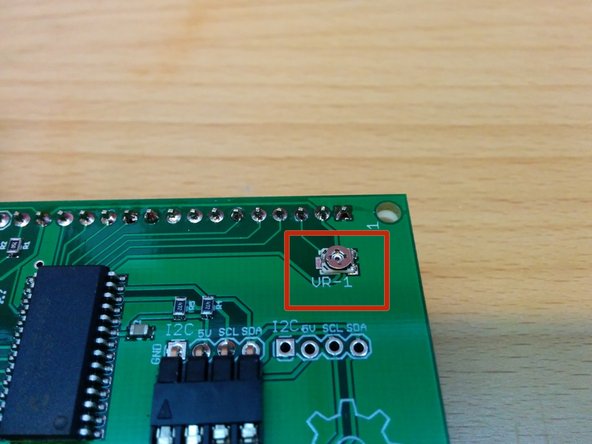

Adjust contrast with VR-1 pot.
-

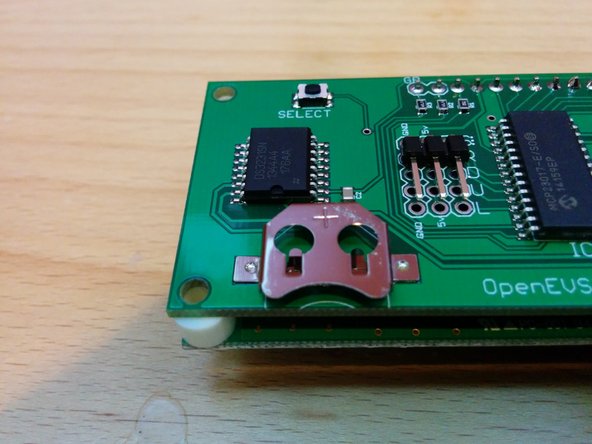

Optional - Insert a CR1216 or CR1220 coin cell battery if you wish to keep current time after power failure with the Real Time Clock option.
-
-
-
Connect 4 pin LCD cable to the OpenEVSE board.
-
Ground pin is closest to board edge.
-
