Unplug your station or turn off the circuit breaker. Never work on your station energized.
-
Remove the 4 Phillips head screws.
-

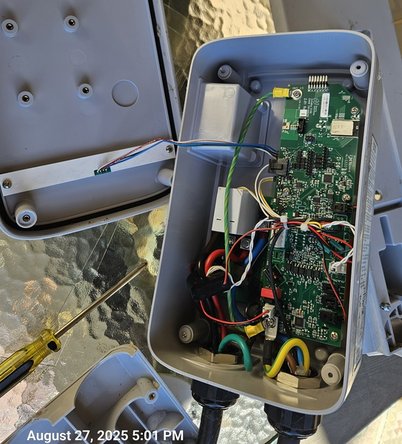

Carefully lift the lid and disconnect the cable for the indicator lights.
-
-
-
Remove the 6 Phillips head screws on the controller board.
-
Remove all the connectors. Note most have tabs which when pressed release the connector.
-
Remove the circuit board.
-
-
-
Install the OpenEVSE controller.
-
Secure with the 6 Phillips screws removed in the previous step.
-
Add the single green wire under the top left position.
-
Add all 3 green wires under the bottom left position with the longest screw.
-
-
-
Identify the AC wires coming from the circuit board/relay module. Tie wrap them together.
-
Connect AC_INPUT (RED and BLACK small 2 Position connector) and AC_TEST (RED and BLACK Large 3 Position connector)
-
-
-
Gather the rest of the wires together and route up and along the green wire. Loosely add a couple tie wraps to keep the wires away from the RED and BLACK power wires.
-
Connect the donut shaped coil WITHOUT the additional wire wrap to the AMP_CT connector.
-
Note - One Power wire runs through this coil.
-
-
-
Connect the connector that goes to the relay to the DCRELAY connector and the pilot wire that goes out to the EV Handle to the PILOT connector.
-
Connect the Donut shaped coil WITH the additional wire wrap to the GFCI connector. Connect the Wire Wrap to the TEST_COIL connector.
-
Note - Two power wires go through the GFCI coil.
Working with an older juicebox 2. The wire that should go to the pilot connection has to be spliced. I'm not sure the old connector, but the wire is 16AWG so it won't fit in the molex connector in the kit without a step down on wire size.
Connector says D2 on top left, MXN on top right, 55 57 across the depressor tab. If that helps at all
-
-
-
Connect the cable for the indicator lights to the RGB_LED connector.
-
Secure the lid with the 4 Phillips head screws
-
Cancel: I did not complete this guide.
3 other people completed this guide.
17 Comments
The white wire wound a couple of times around that one thick coil is definitely referred to as "wrapped" in this guide. If I recall correctly, there is also a pair of red and black wires wrapped around (or through) that coil. A different coil right next to that has only the red and black wires wrapped around/through it.
No doubt John has completed his project, but perhaps someone else will have the same question.
Does this support the RFID reader in the commercial versions? We use this heavily.
Mark McDonald - Open Reply
Can you set the maximum station output current via a jumper? My car can only pull 3.8kW and I get it that under normal working conditions the station can't supply more than the car can accept but I am a little paranoid about the maximum current value resetting to a higher default value after the station is power cycled. If I do change the value in the web interface, can I set it in the ESP32's flash?
I upgraded my non-functioning JuiceBox V2 yesterday using both this OpenEVSE tutorial and this Youtube tutorial, which was useful but a bit unnerving as the youtuber got it wrong on the first try and never explains his mistake. In my caution, I labeled each wire as I disconnected it, first finding it in OpenEVSE tutorial using supplied pictures and text, then affixing a label matching the correct position on the OpenEVSE board. There are three same-sized plugs that you could mix up if not careful. My labels made it easy to get it right; the station is working perfectly! This is a great example of "reuse, repair, recycle"! Much of the JuiceBox is retained and reused, including all that copper, plastic case and fittings, beefy handle, etc. All that gets recycled is the old board. Thank you OpenEVSE and Chris Howell! Please consider making a specifications label that can replace the Enel X label, and a big OpenEVSE label to cover the word JuiceBox! --Jeff Parker
Jeffrey Parker - Open Reply
I’ve realised that my juice box works as single or 3-phase. It has a separate relay for disconnection the neutral and the three phases go through the contactor.
I can remove two phases and their CTs and put the neutral onto the contactor if nobody see issue with that. The GF CT has four wires which I assume 2 for supply/signal and two for the looped wire or should just use a spare-phase CT and wrap a separate wire 5 times as other instructions?
Would that get it working?
Daren keates - Open Reply
I’ve just come to Connect this up and the instructions don’t match the wire colour or some connector sizes. The Test coil has a four way connector on the end but the pub is only 2-wire. I’ve got loads left over too. Help, in on peices and I’m without power.
Daren keates - Open Reply
I'm not familiar with "wire wrap" designation. Does this refer to multi-conductor cables? In the photos, is this the white twisted pair cable and red/black dual conductor cables?
John Poldoian - Open Reply
The white wire wound a couple of times around that one thick coil is definitely referred to as "wrapped" in this guide. If I recall correctly, there is also a pair of red and black wires wrapped around (or through) that coil. A different coil right next to that has only the red and black wires wrapped around/through it.
No doubt John has completed his project, but perhaps someone else will have the same question.
Early JuiceBox v2 used different header/plug on blue pilot wire - it's spliced in these pics. $6 ebay Micro-Fit 3.0 4-pin FTW (plug looks male, but its pins are female, require 20-24 AWG).
Tom Werner - Resolved on Release Reply
Realized my comment on the earlier step is a better reply down here:
Working with an older juicebox 2. The wire that should go to the pilot connection has to be spliced. I'm not sure the old connector, but the wire is 16AWG so it won't fit in the molex connector in the kit without a step down on wire size.
Connector says D2 on top left, MXN on top right, 55 57 across the depressor tab. If that helps at all.
Jared -
The connector in the photos/guide is Molex Micro-Fit 3.0 43650 Part 0436500400. Mating plug is is Micro-Fit 3.0 43645 Part 0436450400. Do you know the type of connector on the early v2s?
Is there a guide to change OCPP end point after the controller is replaced?
@kishoredvrs Here is a OCPP guide for Pulse Energy OCPP setup. The process is similar for any provider.
Step 0: Remove your Juicebox from the wall. You are smart enough to unplug or disable the circuit breaker before you do this, right?

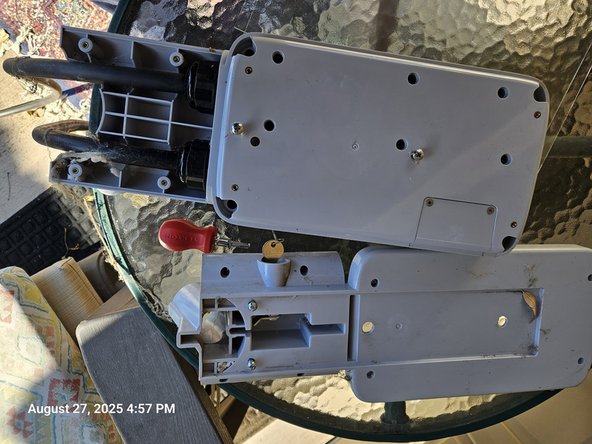

I needed to push my Juicebox straight up to release the screws from the top of the slots holding them in place. If you have a lock, turn the key to the vertical position, then slide the entire controller and cable hook upwards a few centimeters. In them first picture below, the key is in the unlock position. You can see two screws on the top device, which is the controller, that are on the centerline, and two screws on the bottom device, on the back of the cable hook, which are aligned horizontally.
The connectors are not in the same position on the openevse controller as they are on the ENEL. To remember where those connectors were, I took a high resolution picture before I began detaching wires.
