Quick Start Guide

Written By: Christopher Howell
  • Comments: 1
  • Favorites: 0

Difficulty

Very easy

Steps

7

Time Required

00:15:00

Sections

1

Flags

0

Featured Document

  1. Thank You for purchasing a OpenEVSE Charging Station

    • Thank You for purchasing a OpenEVSE Charging Station

    Edit

  2. NEMA 14-50 commonly called an "RV outlet" is recommended to charge your vehicle Level 2 at up to 40A.

    • NEMA 14-50 commonly called an "RV outlet" is recommended to charge your vehicle Level 2 at up to 40A.

    Edit

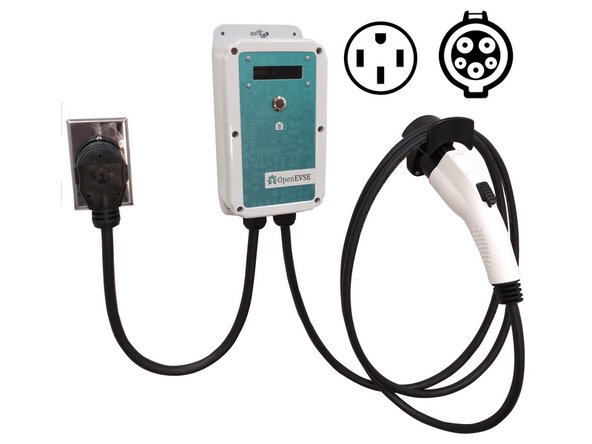

  3. Mount charging station using appropriate method for the mounting surface. Visit our online guide for more detail.

    • Mount charging station using appropriate method for the mounting surface. Visit our online guide for more detail.

    • For the full Guide Click here:

    • Mount your charging station.

    • Portable Mark 2 center holes top and bottom if you plan to use your Charging station on the road. It will be very easy to remove.

    • Static For more static install, mark the 4 corner holes.

    Edit

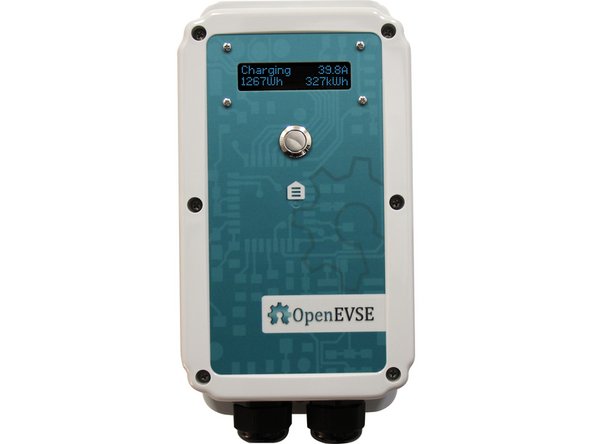

  4. Visualize the status of your station from a distance with color

    • Visualize the status of your station from a distance with color

    • Ready - Green

    • Connected - Yellow

    • Charging - Blue

    • Error - Red

    • Sleeping - Purple

    Edit

  5. Connect charging station to your WiFi network with a phone, tablet, or computer. Visit our online guide for more detail.

    • Connect charging station to your WiFi network with a phone, tablet, or computer. Visit our online guide for more detail.

    • For the full Guide Click here:

    • Connect WiFi

    • Connect to the OpenEVSE WiFi Portal

    • Network: OpenEVSE_XXXXXX

    • Password: openevse

    Edit

    • open web browser enter openevse.local or 192.168.4.1 if portal does not open automatically

    • select your network

    • enter your network password

    • reconnect device to your network

    • reconnect to openevse.local

    Edit

  7. Contact us with any questions

    • Contact us with any questions

    • Web: openevse.com

    • E-mail: support@openevse.com

    • Phone: (877) 967-3638

    Edit
